Name: Small Oled Screen 1.46 Inch Amoled Display With SPI Interface
Brand: Zoyo
SKU: ZY14601
Price: 2 USD
Availability: InStock
Rating: 5 (110 reviews)

Rincian produk

Tempat asal: Hangzhou, Cina

Nama merek: Zoyo

Sertifikasi: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068

Nomor model: ZY14601

Syarat Pembayaran & Pengiriman

Kuantitas min Order: MOQ fleksibel

Harga: $2~$500 per piece

Kemasan rincian: Disesuaikan

Waktu pengiriman: 3-4 minggu

Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Menyediakan kemampuan: 5rb-20rb potong per hari

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyorot:
                                                                                                                                                                                1.46 inch Amoled Display, Small Oled Screen, SPI Interface Amoled Display


Ukuran (inci):	1.46	Resolusi:	194*368
Pencahayaan (nit):	600	Suhu operasi:	-20℃～70℃

Ukuran (inci):	1.46
Resolusi:	194*368
Pencahayaan (nit):	600
Suhu operasi:	-20℃～70℃

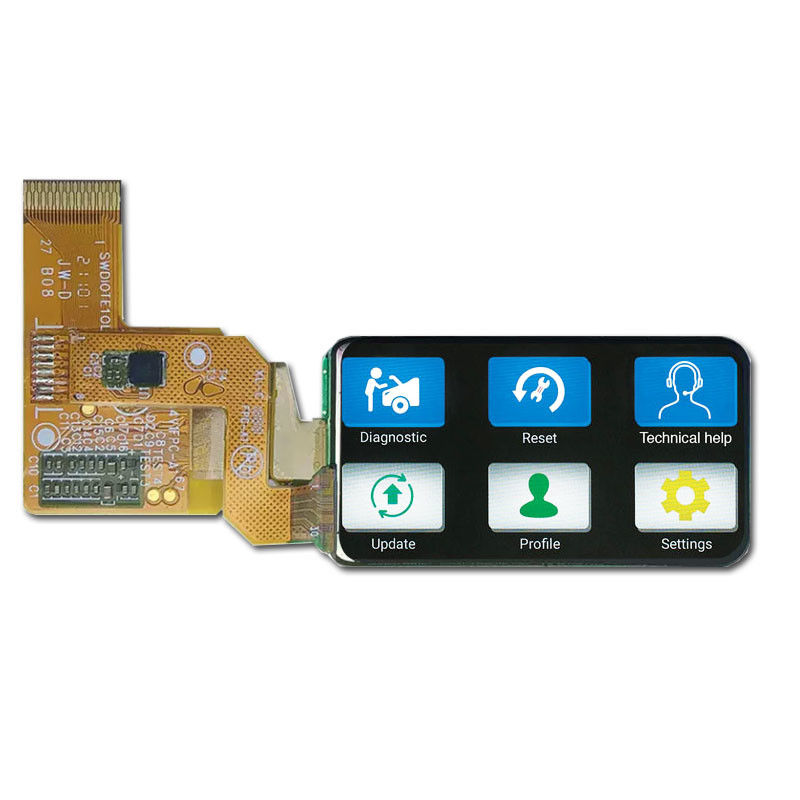

Small Oled Screen 1.46 Inch Amoled Display With SPI Interface

GENERAL SPECIFICATIONS
Item		Specification	Unit	Note
Screen Size		1.46
Resolution		194*368	pixels
Operating Temperature		‐20 ~ 70	°C
Pixel Density		282	ppi
Luminance		600	Cd/m2	-
Module Size	Horizontal (H)	19.36	mm	typ
	Vertical (V)	36.17
	Thickness (T)	0.5
Active Area	Horizontal	17.46	mm
Active Area	Vertical	33.12	mm
TP		Oncell
Shape		Bar
Interface Type		SPI/QSPI/MIPI/I2C
Color Gamut		DCI-P3 Typ. 100%
Color depth		24	bits
Contrast Ratio		1000000:1
Power Consumption(mW)		124	mW
Refresh rate		60Hz(15Hz-AOD)
Low Blue Light		5%
Kind Tips: More details please contact us for products' specifications
